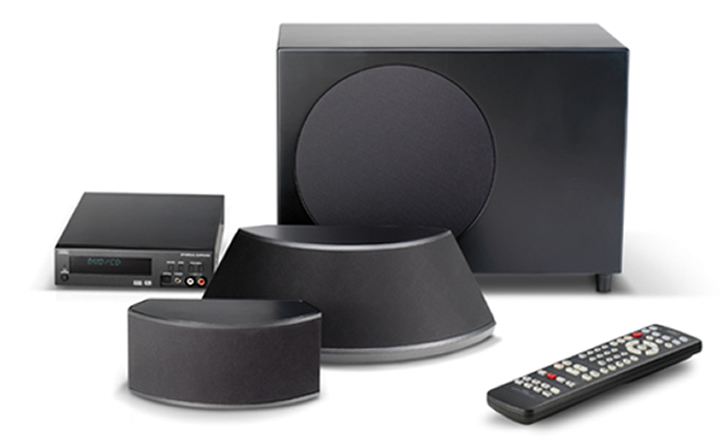

| The ultra-compact Digital Power Amplifier is highly efficient, with a power rating of 30 watts per each of the five main channels plus 50 watts for the subwoofer; a total output of 200 watts. The cooling fan features variable speeds, spinning quietly at low volumes and running full during higher listening levels. Working with the NIRO 800 Subwoofer, it generates powerful, low distortion performance, worthy of any high-end audio system. |
Amplifier Type:
Fully digital 6-channel amplifier
Power Outputs:
30W x 5 for main channels
50W x 1 for subwoofer
Supported Audio Formats:
Dolby Digital, DTS, Dolby Pro Logic II
Input Terminals:
4 digital (3 optical, 1 coaxial), 2 analog
Output Terminals:
8 main speaker, 24 MovieMouse speaker, 6 subwoofer,
16-50 headphone (32 recommended)
Dimensions: 7.9(W) x 2.2(H) x 11.7(D) in.
Weight: 4 lb. 13 oz.
Power Requirement: 120V AC, 60Hz |

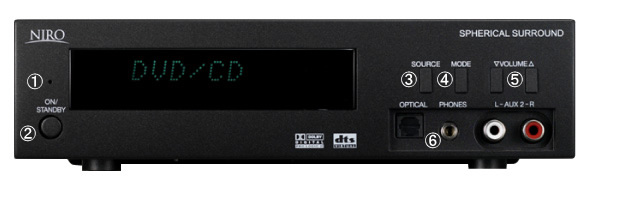

Front
1. Standby indicator
2. Power
3. Input Source
4. Listening Mode Setting
5. Volume Control
6. Headphone Output |

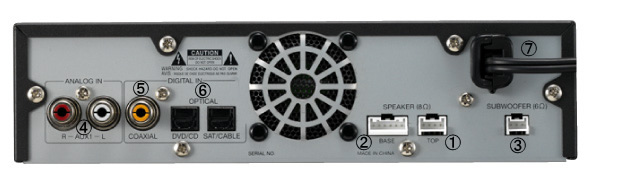

Rear
1. Top Speaker Connector Terminal
2. Base Speaker Connector Terminal
3. Sub Connector Terminal
4. Analog Input Terminal
5. Coaxial Input Terminal
6. Optical Inputs - DVD/CD/Cable/Sat.
7. Power Cable
|
